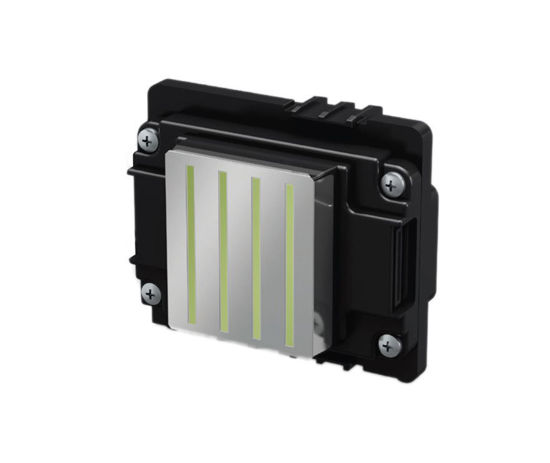

Epson i3200 Printhead

The Epson I3200-A1 Water is a budget-friendly MEMs printhead series measuring 1.33 inches wide. It delivers high image quality and productivity with a dense 600dpi resolution and is compatible with water-based inks. The printhead includes the manifold.

The Epson I3200-A1 and I3200-A1 HD share identical physical designs, both featuring 8 rows of 400 nozzles each. However, they are not interchangeable—each printhead is only compatible with the specific printer it was made for.

• The Epson I3200-A1 supports up to 4 ink colors.

  • There are 4 manifold inputs (nipples) for connecting dampers.

  • Each color uses 2 nozzle rows.

• The Epson I3200-A1 HD supports up to 8 ink colors.

  • There are 8 manifold inputs (nipples) for connecting dampers.

  • Each color uses 1 nozzle row.

Important Warranty Note: Due to the characteristics of DTF inks, once the printhead is installed, returns, exchanges, or refunds are not accepted. All sales are final.

Installation Tip: It's recommended to replace the head cables when installing a new printhead.

Technical Specifications:

• Ink Type: Water-based (Aqueous)

• Technology: PrecisionCore MicroTFP

• Dimensions: 69.1 × 59.4 × 35.6 mm

• Weight: 82 grams

• Nozzles: 3200 total

• Nozzle pitch: 1/300 inch

• Nozzle rows: 8

• Resolution: 300 nozzles/inch per row, 600 nozzles/inch using 2 rows

• Max colors supported: 4

• Print width: 33.8 mm (1.33 inches)

• Droplet ejection:

  • Binary: 6 pl at 43.2 kHz

  • 3-level grayscale: 6.3 pl, 12.3 pl at 21.6 kHz

  • 4-level grayscale: 3.8 pl, 6.1 pl, 9.4 pl at 21.6 kHz

• Ink viscosity range: 3–4 mPa·s

• Manufactured in: Japan
