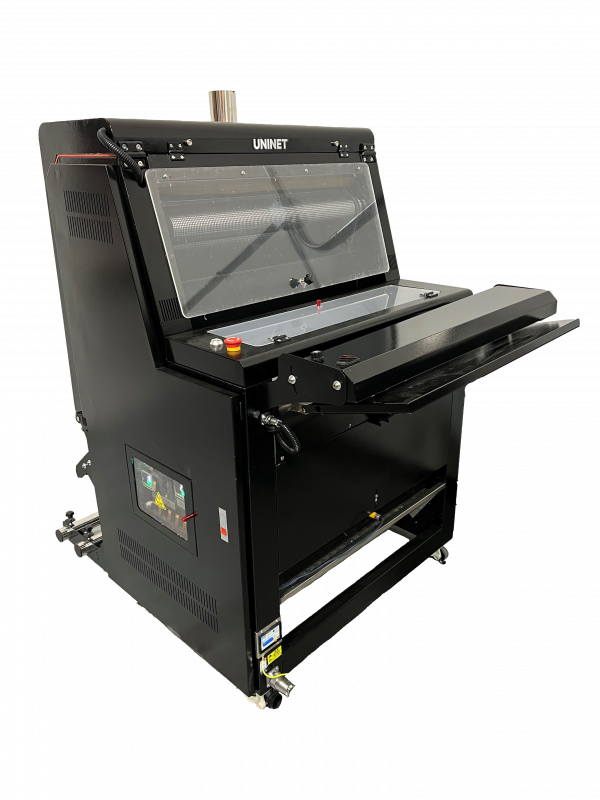

Upright DTF™ 17 in SLIMSHAKER - Vertical Automated Powder Application and Curing Machine 220V

Key Features:

• Compact Vertical Design: Designed to save space with a minimal footprint, while still offering the same curing capacity as larger horizontal shakers. Can be moved through a standard 36-inch U.S. doorway when disassembled.

• Automated Powder Distribution: Simply load the powder into the machine, and it will be evenly applied to your prints. Speed settings are adjustable for greater control.

• Self-Cleaning & Powder Recycling: Excess powder is automatically removed from the film and recirculated for reuse.

• Independent Dual Heating Zones: Allows for more precise and stable temperature management compared to traditional shakers.

• Vacuum Belt Mechanism: Reduces friction and static electricity, preventing common operational issues seen in other models.

• Improved Take-Up Reel: Equipped with an extra tension bar for smoother and tighter film rolling.

• Patent-Pending Engineering: Protected under Patent #63440762.

• Fume Exhaust Port: Built-in port enables quick connection of a fume extractor (sold separately).

Technical Specifications:

• Weight: 220 kg (approximately 485 lbs)

• Voltage/Amps: 220V / 40A

• Electrical Requirements:

  • 30A, 240V, 2-pole outlet

  • One 30A, 240V, 2-pole circuit breaker

  • 9-gauge wiring

  • Requires a grounded, 3-prong plug (If the outlet is ungrounded, consult a licensed electrician to upgrade. Do not use plug adapters.)

Dimensions:

• Uncrated: 57" (L) x 32" (W) x 61" (H) – 485 lbs

• Crated: 53" (L) x 38" (W) x 70" (H) – 617 lbs

Compatibility:

The SLIMSHAKER works with roll-fed DTF printers, including UNINET™ roll printers, and is compatible with many major brands such as Oric, Audley, HJD, Titan, Coldesi, All American / DTF Station, Mutoh STS, Mimaki, Roland, and other DTF roll-capable machines.

It supports all DTF PET film rolls up to 17" wide, including popular sizes like 13", and is compatible with powders and films from top manufacturers in the industry.
